[Deep Dive] From Multi-Tier to Multi-Tenant: The Next Frontier in OpenClaw Gateway Architecture

A follow-up to "The Need For a Multi-Gateway OpenClaw Setup" — and why I'd already built the answer to his last paragraph

Rahul’s recent piece, The Need For a Multi-Gateway OpenClaw Setup, is one of the more important architectural articles to come out of this community. It addresses a real problem, credential bleed in single-gateway deployments, and proposes a clean solution: isolate agents into tiers, each with their own config, secrets, and launchd service.

I read it and immediately recognized the problem. I’d been living it.

But I also noticed how it ends:

“The one thing we didn’t implement (yet) is network-level isolation between tiers. Right now, all gateways bind to loopback — they’re only accessible locally. But they share the same network namespace. For a truly hardened deployment, you’d want each tier in its own container or VM. That’s a problem for another day.”

That last paragraph stopped me. Because I’ve spent the last several weeks building exactly that, and I want to share what I learned, where I diverged from the multi-tier model, and two architectural patterns I haven’t seen anyone write about yet.

---

The Distinction That Changes Everything: Multi-Tier vs. Multi-Tenant

Rahul’s model solves the single-user problem. One person, multiple trust contexts, personal life, work, clients, dev tools, each in a separate gateway tier. It’s elegant, and for most OpenClaw users, it’s exactly the right answer.

But it’s still fundamentally a single-user architecture.

What if you need to give different people their own isolated AI gateway? What if your organization has 50 employees, and you want every one of them to have their own OpenClaw environment, with their own agents, their own secrets, their own channel configurations, without any of them sharing a runtime with anyone else?

That’s not a multi-tier problem. That’s a multi-tenant problem.

The distinction matters because multi-tenant takes every concern Rahul identifies, credential bleed, blast radius, trust boundaries, and multiplies it by the number of users in your organization. In a single-gateway deployment, a compromised agent exposes one person’s secrets. In a naive multi-user deployment, it could expose everyone’s.

This is the problem I set out to solve. The result is what I’ve been calling Clawporate, a production multi-tenant OpenClaw platform running on AWS.

---

What I Built

The architecture is straightforward to describe, even if the implementation had its share of surprises.

Every user gets:

• Their own ECS Fargate container — a dedicated, isolated gateway process with zero shared runtime with any other user. This is Rahul’s “container or VM” suggestion, implemented at scale.

• Their own EFS workspace — each container mounts a dedicated volume at /home/node/.openclaw. Their config, their agent files, their session history, their skills. Completely separate.

• Their own secrets in AWS Secrets Manager — per-user API keys, channel tokens, LLM provider credentials. No shared secret store. If a user’s keys are compromised, no other user is affected.

• Their own subdomain — {username}.gw.clawporate.elelem.expert, routed through an Application Load Balancer with wildcard ACM certificates. Every user’s gateway is independently addressable.

• Their own gateway token — generated at provisioning time, stored in Secrets Manager, loaded into the container at boot. One user’s token cannot authenticate to another user’s gateway.

The provisioning flow is handled by a Next.js portal with Google OAuth. A user signs in, completes a brief onboarding, and within a couple of minutes their gateway container is running on Fargate, their workspace is initialized on EFS, and they can start pairing their devices.

The portal also handles lifecycle management, start, stop, status, so users don’t need to touch AWS directly. The infrastructure is invisible.

---

What Network-Level Isolation Actually Looks Like

In Rahul’s model, gateways share the same machine and the same network namespace. They’re isolated by process and by file, but they’re not isolated by network. A compromised process could potentially reach another gateway’s port directly.

In the Fargate model, each container runs in its own isolated network namespace by design. Container A cannot reach Container B’s internal port. The only ingress path is through the ALB, which enforces authentication. There is no lateral movement path between user environments — not without going through the same auth layer that external traffic uses.

This is the difference between process isolation and network isolation. Both matter. Multi-tier gives you the former. Fargate gives you both.

---

The Pattern I Haven’t Seen Anyone Write About: Directional Trust

Here’s something that emerged from thinking about the relationship between my personal gateway and the Clawporate work gateway.

Rahul’s tiers are hermetically sealed from each other. That’s correct for most cases. But there’s a nuanced middle ground worth naming: directional trust.

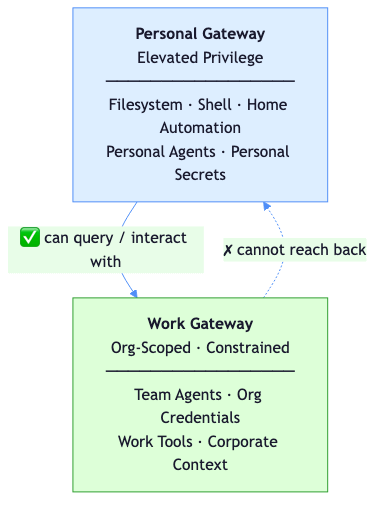

My personal gateway has an explicit trust relationship into my work gateway. It can query it, interact with it, relay information to it. The reverse is not true, my work gateway has no awareness of, and no access to, my personal gateway.

If you’ve worked in network security, this pattern is immediately familiar: it’s how bastion hosts work. One-directional trust with explicit access control. The privileged environment (personal, with full filesystem access and shell access) can reach into the constrained environment (work, with org-scoped tools and credentials). But the constrained environment cannot reach back.

Applied to AI gateways:

This isn’t just an interesting architectural curiosity. It has practical implications:

• My personal assistant (Junior) can relay information to my work agents or check work context

• My work agents cannot access personal filesystem, personal Telegram, personal secrets

• If my work gateway is compromised (malicious skill, prompt injection, whatever), the blast radius stops at the org boundary, it cannot pivot to my personal environment

• I can choose to revoke the work gateway’s exposure entirely without affecting my personal setup

The implementation right now is less OpenClaw-native than I’d like, it’s more about careful credential scoping and network access than a formal gateway-to-gateway trust mechanism. But the pattern is worth articulating, because I think OpenClaw’s multi-gateway model could benefit from first-class support for directional trust relationships between gateways.

---

Gateway HA: What Happens When Your Brain Goes Down?

I want to flag a problem that multi-gateway architecture opens up that, to my knowledge, hasn’t been addressed in any OpenClaw writing.

What happens when your gateway goes down?

In a single-gateway deployment, the answer is simple and painful: you lose your AI. In a multi-tier deployment, one tier going down is less catastrophic — but if it’s your primary work tier, it still means you’re offline until you notice and restart it.

For production deployments, especially enterprise ones, “restart it when you notice” is not an acceptable SLA.

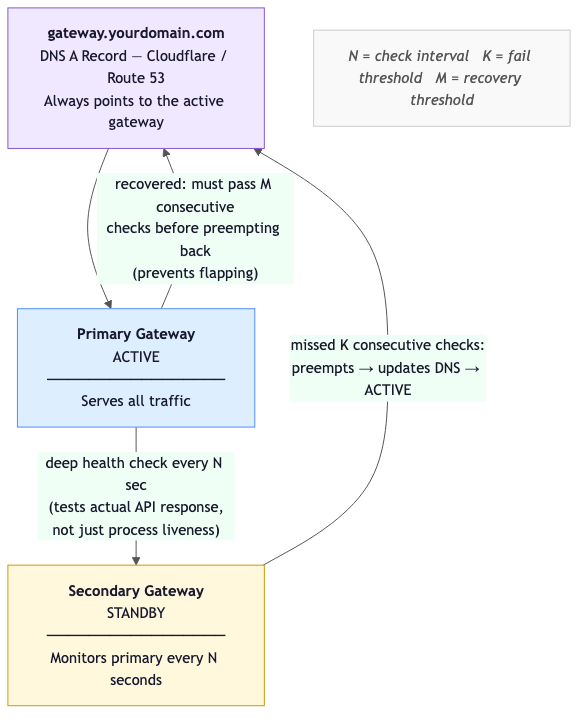

I’ve been thinking about a gateway high-availability pattern borrowed from a protocol many network engineers will recognize: HSRP (Hot Standby Router Protocol, or its open-standard equivalent VRRP). The pattern is simple and battle-tested:

1. Primary gateway runs normally, serving all requests.

2. Secondary gateway runs in standby mode, watching for heartbeats from the primary.

3. Heartbeat failure — if the secondary misses N consecutive heartbeats, it declares itself active, updates the shared DNS record (via Cloudflare API or Route 53), and starts serving traffic. This is the preemption event.

4. Preempt delay — when the primary recovers, it doesn’t immediately reclaim the active role. In HSRP, this is time-based; a configurable delay ensures the recovering device is fully stable before it takes back ownership. For a gateway, I’d extend this: the primary must successfully complete M consecutive deep health checks, not just “process is running” but “gateway is actually responding correctly”, before it’s eligible to preempt back.

5. Coordinated handoff — once the delay expires, the primary signals the secondary, the secondary gracefully drains, and the primary resumes.

The shared resource is a DNS hostname — gateway.yourdomain.com — that always points to whichever instance is currently active. Clients (mobile devices, Telegram, whatever) never need to know about the failover. They just keep talking to the same hostname.

For Fargate deployments, the implementation looks like a health check Lambda that monitors the active task and updates the ALB target group when failover is needed. For local deployments (two Mac Minis, primary and backup), it’s a heartbeat script and a DNS update call, but you don’t need Cloudflare or Route 53 for that.

If both gateways are on your LAN, a local DNS server owns the hostname entirely. Pi-hole, dnsmasq, BIND, any of them will do. The failover script rewrites the A record (or drops a new entry in the dnsmasq hosts file and sends a SIGHUP) instead of hitting a cloud API. Local DNS TTL can be set to zero, making propagation nearly instantaneous, faster than any external provider and with zero external dependency. For a home lab or a two-Mac setup, this is actually the cleaner option.

A note on preemption in real HSRP: worth clarifying that in actual HSRP, preemption is not enabled by default. Once a standby takes over, it stays active even after the primary recovers, unless you explicitly configure preemption. For an AI gateway, you probably want preemption enabled (your primary machine likely has better connectivity and local tool access), but you want it gated behind the delay to prevent flapping.

The harder problem: what if the primary doesn’t know it’s struggling?

This is the question worth sitting with. Standard heartbeats are shallow, they check whether the process is alive. But a gateway can be alive and broken simultaneously: a skill is hung, a model call is timing out, context has been corrupted, memory is exhausted. The process keeps running. The heartbeat keeps succeeding. The secondary never preempts. But your AI is producing garbage or not responding at all. It’s like running an ICMP check on a web server whose application layer has crashed, the ping succeeds, the website is dead.

The solution is deep health checks, the heartbeat doesn’t just ping the process, it sends an actual test request through the gateway API and validates the response. If the gateway fails to respond within a timeout, or returns an error, that counts as a missed heartbeat. You’re testing function, not existence.

This is what AWS ALB health checks do at the infrastructure layer. Applied to a gateway: every N seconds, the secondary sends a lightweight test query to the primary’s API endpoint. The primary must respond correctly, not just with a 200, but with a valid, well-formed response. Three consecutive failures trigger preemption. This catches the zombie case that process-level monitoring misses.

The split-brain risk

There’s one more failure mode to name: split-brain. It happens when both gateways believe they’re active simultaneously, usually during a network partition where the primary is still running but the secondary can’t reach it to check.

In HSRP, this is partially mitigated by the assumption that if two devices can’t communicate with each other, at least one of them also can’t reach the rest of the network. For an AI gateway, the equivalent assumption is: if the secondary can’t reach the primary, it probably also can’t reach the clients, so promoting itself doesn’t cause harm.

But DNS-based failover introduces a window where both gateways receive traffic, the period between when DNS is updated and when all clients’ DNS caches expire. For most use cases, this is acceptable (a few seconds of potential duplication). For production deployments, setting a very low DNS TTL (60 seconds or less) on the gateway hostname before you need it minimizes this window.

The session continuity problem, and why it has two layers

I want to be honest: HA for an AI gateway isn’t just an uptime problem. It’s a context problem.

When your secondary takes over, it doesn’t inherit your ongoing conversations. The session history, the context window, the memory of what you were working on, lives on the primary. The secondary starts fresh. From a routing perspective, failover is seamless. From a cognitive continuity perspective, your AI just forgot everything.

The goal should be that a user notices nothing after a failover. Not a brief interruption. Not a reset. Nothing. Getting there requires solving two distinct sync problems, and conflating them is a mistake.

Layer 1: Persistent memory sync — the slow layer. This covers your long-term memory files, MEMORY.md, daily logs, dream routine digests (covered expertly by Rahul Subramaniam), PERSONA updates. These change infrequently and tolerate lag. The solution is straightforward: both primary and secondary mount the same shared store. On AWS, that’s EFS. On local deployments, it’s a synced volume or a git repo that commits frequently. If primary fails, secondary loads the shared memory store and has everything up to the last write. This layer is largely already solved if you’re running a proper memory architecture, the QMD pattern, the nightly dream routine, persistent logs. They’re not just good hygiene; they’re load-bearing for HA.

Layer 2: Active session state sync — the hard layer. This is the in-flight conversation. The context window right now, mid-session, the last ten messages exchanged. That’s not in any memory file, it lives in RAM inside the gateway process. If primary fails mid-conversation, the secondary doesn’t need yesterday’s digest. It needs the transcript from thirty seconds ago.

OpenClaw already solves half of this problem without knowing it: every session is written to a .jsonl transcript file on disk as messages come in. The file is the source of truth for the session. The mechanism for seamless failover is therefore: replicate those transcript files to the secondary in near-real-time.

The implementation options, roughly in order of simplicity:

• Shared mount — primary and secondary both write to and read from the same filesystem (EFS, NFS, SMB). No replication needed; the files are inherently shared. Simplest approach, introduces a shared dependency.

• rsync on a tight loop — primary’s session directory is rsynced to secondary every few seconds. A small gap exists (last rsync cycle), but for most conversations this is imperceptible.

• Write-ahead log mirroring — every append to a session .jsonl on primary is immediately mirrored to secondary. More complex, near-zero gap.

On failover, the secondary reads the replicated transcript, reconstructs the context window from the last N messages, and continues. The user sends their next message. The secondary responds. The conversation continues as if nothing happened, because from the transcript’s perspective, nothing did.

This is why the QMD pattern, the dream routine, and persistent memory aren’t just nice-to-haves. In a serious HA architecture, they’re the foundation that makes Layer 1 cheap and Layer 2 tractable. Build them first, and the HA story becomes much simpler to tell.

Neither the heartbeat implementation nor the DNS failover is complex. The concept is what matters, and the concept is proven, HSRP has been keeping networks up for 30 years. Applying it to AI gateways is mostly a matter of recognizing that the same failure modes exist and that the same solutions apply.

I haven’t shipped this yet. But I’m planning to. And I think the OpenClaw community needs this conversation before more people move their agents into production and discover the hard way that availability matters.

---

The Frontier: True Multi-Gateway (And What It Actually Means)

Before I close, I want to name something that I think gets lost in the current conversation, including, to some extent, in Rahul’s piece and in my own work above.

When we say “multi-gateway,” we’re still mostly talking about multiple gateways on the same host. Rahul’s tiers all bind to loopback on the same machine. My Fargate containers live in the same AWS region. The gateways are isolated from each other, yes — but they’re all centrally provisioned, centrally managed, and operating in a single infrastructure context.

That’s not really what “multi-gateway” should mean at its limit.

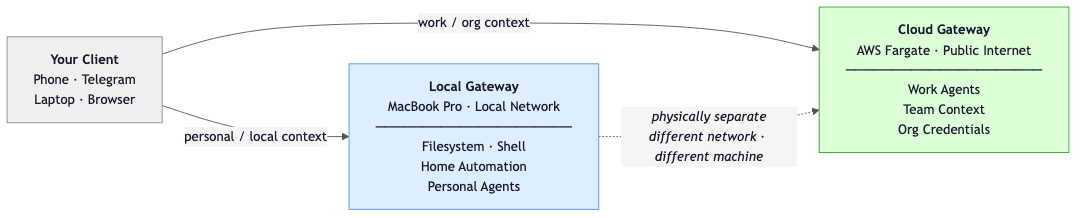

Here’s the concept I’ve been sitting with: a single client, your phone, your Telegram bot, your laptop, simultaneously connected to multiple physically separate gateways. Not one gateway with many tiers. Not one gateway per user. One client, aware of multiple independent gateways on different machines in different network locations, routing work to each based on context.

My laptop has a local gateway running on it. That local gateway has filesystem access, home automation control, shell access, personal agents. My Clawporate cloud gateway runs on AWS Fargate. It has my work agents, my Trilogy credentials, my team context. Right now, these are two separate systems I interact with separately, different bots, different entry points.

But what if my laptop could join both? What if it could say: “I’m registered with the local gateway and the cloud gateway, and I know that when you ask about my files or my home, that’s local, and when you ask about work, that’s cloud”?

That’s a fundamentally different architecture than anything currently being discussed. And it’s not just a convenience feature, it has real implications:

• True physical separation — the gateways aren’t just isolated by process or container; they’re on different machines, potentially different networks, different jurisdictions

• Localized privilege — your most sensitive agents (file access, shell, local tools) never leave your machine, even when you’re interacting through a cloud-routed channel

• Resilience — if the cloud gateway is unreachable, local still works. If the local machine is offline, cloud still works. No single point of failure

• Organizational + personal coexistence — your employer can provision you a cloud gateway with org controls, and you still maintain your own local gateway with personal context that they can’t see

I’m not going to pretend I’ve solved the routing problem, how a client decides which gateway handles which request is a genuinely hard question that involves intent detection, explicit tagging, or some kind of gateway-aware routing layer that doesn’t exist yet in OpenClaw. I don’t have that answer.

But I think naming the destination matters. Because right now, when the community talks about “multi-gateway,” we’re mostly talking about horizontal separation within a single infrastructure context. The next evolution is vertical separation across physically distinct systems, and the routing question is the interesting engineering problem waiting to be solved.

Rahul said “that’s a problem for another day” about network isolation. I built network isolation. I’m saying the client-aware, physically-distributed multi-gateway is the next “another day.” Someone will build it.

---

Where This Is Going

The progression as I see it:

1. Single gateway → Simple, sufficient for most users starting out

2. Multi-tier → Credential isolation for power users with multiple trust contexts (Rahul’s piece)

3. Multi-tenant → Network isolation for organizations deploying to multiple users (what I built)

4. Directional trust → Explicit relationship model between gateways with defined access flow

5. Gateway HA → Availability guarantees for production deployments

6. Client-aware distributed multi-gateway → One client, multiple physically separate gateways, intelligent routing, the frontier

We’re at step 2 in the community conversation. Steps 3 through 5 are where I’ve been spending my time. Step 6 is where I think the field is going.

If you’re running OpenClaw seriously, for yourself, for a team, or as the foundation for a product, these aren’t abstract architecture questions. They’re the difference between a toy and infrastructure you can depend on.

The gateway isn’t just a process. It’s a brain. Brains deserve better reliability engineering than “restart it when you notice.”
